2.74 osy 3070 TIGHT WEAVE

TIGHT WEAVES
2.74 ounce per square yard (osy) TIGHT WEAVE
Balanced 70 x 70 thread count Silane for epoxy resins
6 micron filament E-glass yarn ECDE 300 1/0 warp and fill
Style 3070  in  38"   44"  &   50" widths
in  select rolls  on 2" PVC pipe.
Scroll down for cheap, cheap Factory rolls at 50 cents per yard !
FREE ground shipping to the 48 Continental United States
Blue lines below are clickable ORDER and PAY with PayPal links
38" wide rolls on 2" pvc pipe

44" wide rolls on 2" pvc pipe
50" wide rolls on 2" pvc pipe
GO DOWN FOR THE CHEAP ROLLS
               Thayercraft Home

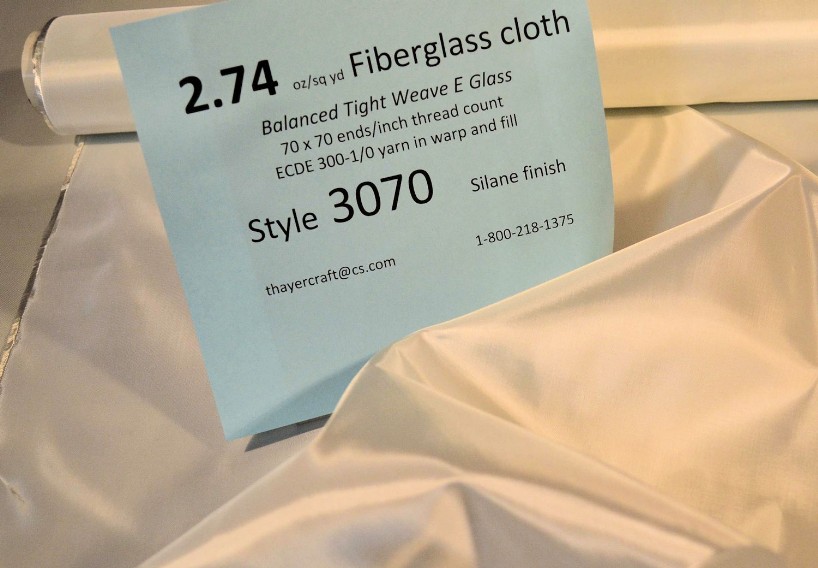

70x70 ends/inch tight weave fiberglass cloth
cheap, cheap Factory rolls
Below rolls are as they came from the weaver on their original cores.  3070 is on two types of cores. The first is  5" outside diameter(od) and 3" inside diameter(id) with 1" thick walls. The 5x3 cores weigh  3.8 pounds per running foot. The second core is 7" od x 6" id and has a 1/2"  wall thickness which weighs 3.5 pounds per linear foot.  Examples:   5" od x 3" id cores: 40.5" Long weigh 13.8 pounds, 46" Long weigh 15.6 pounds and 54" Long weigh 18 pounds. 7" od x 6" id  factory cores 42" Long weigh 12.25 pounds, 46" Long weigh 14.4 pounds, 54" Long weigh 15.8 pounds. The 38" wide cloth will be on 40.5 - 42" cores, 44" on 46" cores and 50" wide fabric will be on 52 - 54" cores.  Roll weights can be estimated by first calculating the weight of the cloth then adding the core weight.  Example:  a 1011 yard roll of 3070, 50" wide on a 7" od core can be calculated as:  2.74 ounce per square yard divided by 16 ounces per pound to convert to pounds times the width of the cloth, 50" divided by 36, to correct for the oz/sq yd(osy) times the yards 1011 => 2.74/16 x 50/36 x 1011 => 0.17 x 1.38 x 1011 = 237 pounds for the cloth plus approx 18 pounds for the core for 255 pounds thus far.  The pallet and box will add another 40 pounds for total of approximately 300 pounds with dims of 57 x 24 x 18" for the pallet ready to load on the truck.  We pay the shipping to the 48 Continental US so this is just for you to have an idea of what the roll you're getting will weigh. All finishes compatible with Epoxy resin.  Most of the CS426+ finish rolls will be on 7" od cores with CS718 on 5" cores. Free shipping to the 48 Continental United States.   Factory rolls in this list are not for International sales.
38" wide on factory cores $0.70/yd FREE ground shipping to the 48 Continental United States
44" wide on factory cores $0.80/yd FREE ground shipping to the 48 Continental United States
44" over 1000 yds $0.50/yd

50" wide on factory cores $0.90/yd FREE ground shipping to the 48 Continental United States

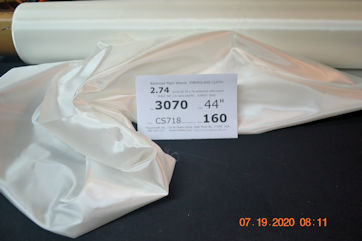

2.74 osy style 70x70 balanced fiberglass cloth

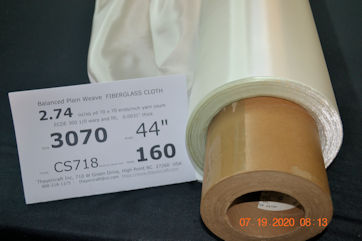

2.74 osy style 70x70 balanced fiberglass cloth

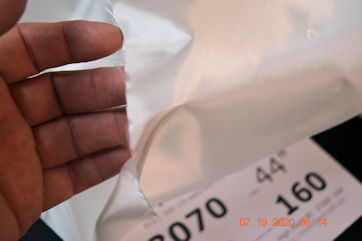

My hand with 3070 tight weave fiberglass cloth

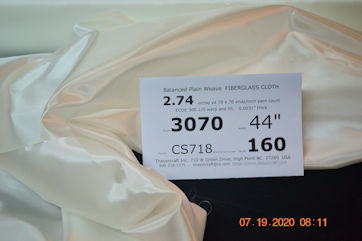

photo of the tight weave 2.74 ounce fiberglass cloth 3070

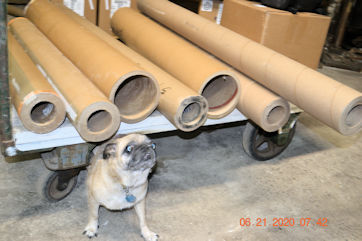

Factory Cores on buggy with Lola

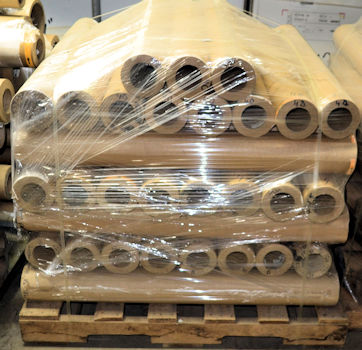

5"od x 3" id factory cores on pallet
