26 oz/sq yd 8 harness satin weave fiberglass cloth

Satin in the Greige - no finish
Heavy 26.8 ounce Satin Weave
Fiberglass Cloth style 1938
$0.70/yard for all 13,538 yards
or by the roll at
$1/yard for 29.5"
38" and 38.5"
plus shipping
This cloth is not finished for thermosetting resins but instead for Silicone rubber or heat barrier type applications
1938 in the greige - no finish
style 1938 heat cleaned CS210 finish fiberglass cloth
Style 1938 is a 26.8 ounce per square yard eight harness satin weave E-Glass fiberglass fabric that uses the yarn ECK 1/0 in the warp and ECG 37 1/2 in the fill. It has a thread count of 45 x 36 ends/inch and is 0.026" thick. All 1938 being offered here is either "in the greige" pronounced the same as the color gray though not the color and French for loom state as in no post weaving processing done or the 1938 in this list is Heat Cleaned as indicated.  Style 1938 is very similar to the more common style 1584 with the major differences being the filament size used in the yarn and the amount of twist. 1938 uses the 13 micron K yarn in the warp compared to 1584's 9 micron G filament size. 1938 has one flat yarn made up of these 13 micron filaments where 1584 has 2 bundles of 2 strands twisted of the G filament fibers or 4 bundles total with two twisted pairs. 1938 does use the 9 micron G filament glass in the fill yarn making 1584 versus 1938 in the fill more competitive with 1584 using 4 half size bundles versus 2 for the same weight by the 1938. We have stored in this big building of ours quite a bit of style 1938 in mostly 38.5" width material with some 29.5" in either heat cleaned or "in the greige" . Photos at the top and below are Left Side "In The Greige" and on the right are Heat Cleaned.Greige will be the top and heat cleaned below it. Greige cloth is white and slippery. Heat cleaned, and unless heat cleaned and washed, will have a brownish tint in general. There is some various types of heat cleaned fiberglass finishing processes with the majority looking like the cloth in the photo with the brownish tint where some of the residue is left. This is also known as carmelization where the release agents have been cooked at a low temperature but not completely washed off. The cloth in the left, or top on cell phones, photo (Greige) still has the release agents from the weaving process and has a soft slippery feel to it. You can smell the release agents in fabric. Anyone that has been in a fiberglass plant knows this smell well. This cloth was manufactured by Clark-Schwebel now JPS Composites and being in Greige or heat cleaned has no shelf life or expiration date. There is nothing to deteriorate. CS210 and CS456 are numbers for similar heat cleaned fabrics. To give you an idea of the weight of a roll of this cloth the net weight of a 346 yard roll of 38.5" wide style 1938 in the greige is 622 lbs. Weight of cloth per running (linear yard) is 1.37 pounds for 29.5" and 1.8 pounds for 38 and 38-1/2" wide 1938. CS210, CS456 and CS486 are similar heat cleaned finishes. The list below is of actual rolls of style 1938 we have in our building at 710 West Green Drive, High Point NC. Rolls are in ascending order of width and yards. Net Weights are calculated as described with gross weights of rolls estimated. Final weights determined at time of shipment.


Detailed list of individual rolls of style 1938
in order of Style, Width, Finish and Yards
Style Width Finish Yards on roll Net wt - approx gross
  1. 1938 29.5" CS210 78 yards 107 lbs. 127 lbs
  2. 1938 29.5" Greige 84 yards 115 lbs. 135 lbs
  3. 1938 29.5" Greige 85 yards 116 lbs. 136 lbs.
  4. 1938 29.5" CS210 351 yards 480 lbs. 520 lbs.
  5. 1938 29.5" CS210 355 yards 487 lbs. 527 lbs.
  6. 1938 29.5" CS210 355 yards 487 lbs. 527 lbs.
  7. 1938 29.5" CS210 355 yards 487 lbs. 527 lbs.
  8. 1938 29.5" CS210 356 yards 488 lbs. 528 lbs.
  9. 1938 29.5" CS210 356 yards 488 lbs. 528 lbs.
  10. 1938 38.0" CS210 37 yards 67 lbs. 87 lbs.
  11. 1938 38.0" CS456 100 yards 180 lbs. 200 lbs.
  12. 1938 38.0" CS210 104 yards 187 lbs. 207 lbs.
  13. 1938 38.0" CS210 132 yards 238 lbs. 258 lbs.
  14. 1938 38.0" CS210 137 yards 247 lbs. 277 lbs.
  15. 1938 38.0" CS456 168 yards 302 lbs. 340 lbs.
  16. 1938 38.0" CS486 501 yards 901 lbs. 940 lbs.
  17. 1938 38.5" Greige 43 yards 77 lbs. 102 lbs.
  18. 1938 38.5" CS210 46 yards 83 lbs. 108 lbs.
  19. 1938 38.5" CS210 50 yards 90 lbs. 115 lbs.
  20. 1938 38.5" Greige 54 yards 98 lbs. 123 lbs.
  21. 1938 38.5" Greige 59 yards 106 lbs. 128 lbs.
  22. 1938 38.5" CS210 88 yards 158 lbs. 188 lbs.
  23. 1938 38.5" Greige 99 yards 178 lbs. 208 lbs.
  24. 1938 38.5" CS210 104 yards 187 lbs 226 lbs.
  25. 1938 38.5" CS210 106 yards 191 lbs. 230 lbs.
  26. 1938 38.5" Greige 111 yards 199 lbs 238 lbs.
  27. 1938 38.5" Greige 112 yards 202 lbs. 239 lbs.
  28. 1938 38.5" Greige 115 yards 207 lbs. 243 lbs.
  29. 1938 38.5" Greige 116 yards 208 lbs. 244 lbs
  30. 1938 38.5" CS210 132 yards 238 lbs. 268 lbs.
  31. 1938 38.5" CS210 137 yards 247 lbs. 277 lbs.
  32. 1938 38.5" Greige 144 yards 260 lbs. 290 lbs.
  33. 1938 38.5" Greige 168 yards 302 lbs. 332 lbs.
  34. 1938 38.5" Greige 172 yards 309 lbs. 339 lbs.
  35. 1938 38.5" Greige 173 yards 311 lbs. 341 lbs.
  36. 1938 38.5" CS210 174 yards 313 lbs. 343 lbs.
  37. 1938 38.5" Greige 219 yards 394 lbs. 424 lbs.
  38. 1938 38.5" CS210 275 yards 495 lbs. 425 lbs.
  39. 1938 38.5" CS210 289 yards 520 lbs. 550 lbs.
  40. 1938 38.5" CS210 312 yards 562 lbs. 592 lbs.
  41. 1938 38.5" CS210 319 yards 574 lbs. 604 lbs.
  42. 1938 38.5" CS210 326 yards 586 lbs. 616 lbs.
  43. 1938 38.5" CS210 340 yards 612 lbs. 642 lbs.
  44. 1938 38.5" Greige 342 yards 615 lbs. 645 lbs.
  45. 1938 38.5" Greige 346 yards 622 lbs. 652 lbs.
  46. 1938 38.5" Greige 347 yards 624 lbs. 654 lbs.
  47. 1938 38.5" CS210 349 yards 628 lbs. 658 lbs.
  48. 1938 38.5" CS210 351 yards 632 lbs. 662 lbs.
  49. 1938 38.5" CS210 352 yards 634 lbs. 664 lbs.
  50. 1938 38.5" Greige 354 yards 637 lbs. 667 lbs.
  51. 1938 38.5" CS210 354 yards 637 lbs. 667 lbs.
  52. 1938 38.5" Greige 358 yards 644 lbs. 674 lbs.
  53. 1938 38.5" Greige 360 yards 648 lbs. 678 lbs.
  54. 1938 38.5" CS210 360 yards 648 lbs. 678 lbs.
  55. 1938 38.5" Greige 361 yards 649 lbs. 679 lbs.
  56. 1938 38.5" CS210 361 yards 649 lbs. 679 lbs.
  57. 1938 38.5" Greige 368 yards 662 lbs. 692 lbs.
  58. 1938 38.5" Greige 368 yards 662 lbs. 692 lbs
  59. 1938 38.5" CS210 370 yards 666 lbs. 696 lbs.

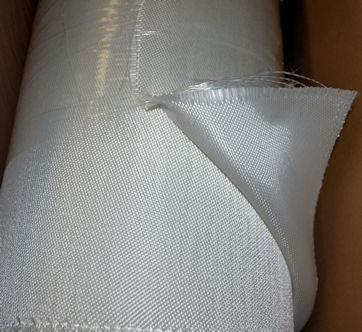

All 13,538 yards for a flat $0.70 per linear yard or $1/yard for 29.5" 38 and 38.5" wide plus shipping. Email thayercraft@cs.com or text my cell at 336-906-0947 with the roll or rolls you want for a shipping quote. Photos below are same two rolls left or top in the greige, roll with more bro
