Style 13788 fiberglass cloth

Satin Weaves > 52 osy 1588 & 13788

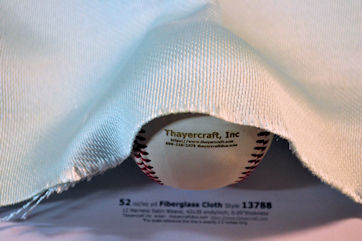

Heavy satin weave fiberglass cloth style 13788 shaped around baseball
Style 13788 is a 52 oz/sq yd, 12 harness satin weave fiberglass fabric.  We have a couple hundred yards of 13788 in 38" in both 504 Volan and the 627 silane finish and some with the 497A inish.  The cloth measures 39.5" overall which does not include the woven outer edge as seen in the photo.  All rolls are rolled on 2" pvc pipe, packed in plastic and other cushioning material and corrugated wrap on the outside.  No tape is put anywhere on the cloth or any packing except for the very outside.  Each roll has four labels with Style, width, finish and yards as well as oz/sq yd and construction data.  To give you an idea of how much cloth your getting the following is the approximate weight of the glass your getting for each roll:  5 yards - 18 lbs. glass, 10 yards - 36 lbs. glass, 20 yard roll - 72 lbs. glass, 30 yard roll is 108 lbs of just the fiberglass cloth!  This is not tooling cloth but a high strength aerospace type fabric with a high strength to weight ratio.

38" wide 12 Harness Satin Weave Style13788
52 oz/sq 42 x 35 ends/inch fiberglass cloth
rolled on 2" Foam Core PVC pipe.
Shipping has got so high and not having an accurate shipping calculator
we are no longer able to sell any rolls with free shipping.  Email us to
thayercraft@cs.com the roll you want 1-Style, 2-width, 3-finish, 4 yards
and we'll quote you the actual shipping cost and if you still want the
roll we'll send a PayPal request.   If you have any problems
enter the individual letters of the email address
thayercraft@cs.com.  This email is monitored 24/7.13788 in soft 504 Volan


13788 in clear 627 Silane


Volan is a chrome based finish good for any resin
has a greenish tint and is generally softer, or
with better "drape".
Silanes are based on Silicone and are clear.
The 627 is a common Silane from
BGF Industries good for any resin.

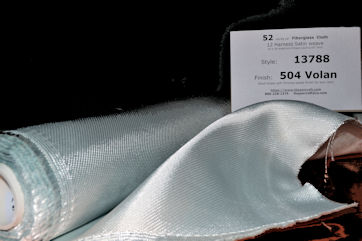

Heavy satin weave fiberglass cloth style 13788 loose on table with info sheet
Edge photo of heavy satin weave fiberglass cloth style 13788

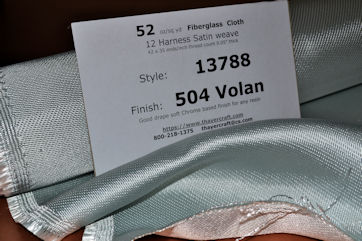

Photo of heavy satin weave fiberglass cloth loose on table

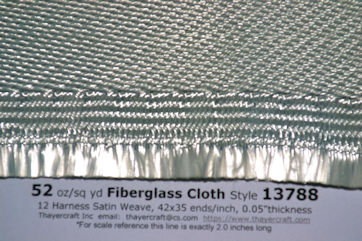

Close up photo of heavy 52 ounce fiberglass cloth
