9.6 oz Style 7500 Fiberglass Cloth with Silane Finish

Open Weaves
9.6 oz/sq yd(osy) Style7500 Fiberglass cloth
16 x 14 ends/inch ECG 37 1/2 yarn warp and fill
FREE ground shipping to the 48 Continental United States
Click the BLUE to ADD TO CART, ORDER and PAY with PayPal links
627 is a universal silane for any resin.  504 is a chrome based Volan

9" wide Style 7500 with Silane 627 finish:
20" wide Style 7500 with the soft 504 Volan finish:

27" wide Style 7500 with Silane 627 finish (factory rolls):

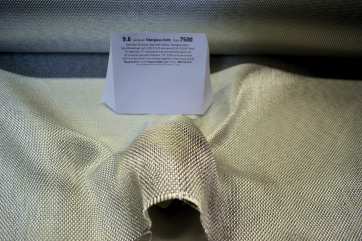

7500 9.6 oz/sq style 7500 shaped around baseball from Thayercraft

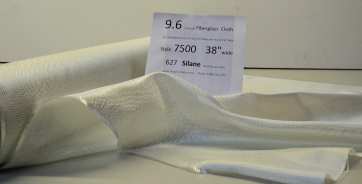

7500 38 627 loose on table from Thayercraft

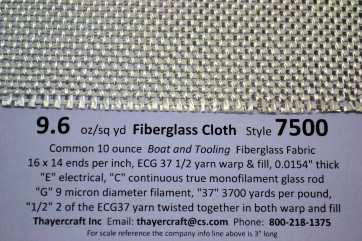

7500 close up with data from Thayercraft
Style 7500 is a 9.6 oz/sq yd boat and tooling type fiberglass cloth.  7500 uses the ECG 37 1/2 yarn in the warp and fill.  The "G" filament used in 7500 being just 9 microns, versus the much larger cheaper-to-make 13 micron "K" filament used in style 1800 of the same weight and thread count, makes for a very flexible cloth.  The two major finishes we have available of the style 7500 is the universal silane 627 from BGF and their 504 Volan.  The 627 is on most of the tape rolls also.  Volan, especially BGF's superb 504 Volan, is the softest of all finishes we sell.   Here's a video showing how the finish effects the handling of any particular style of fiberlass fabric

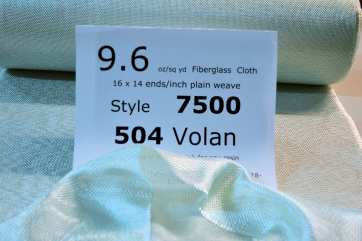

7500 504 Volan 10 oz fiberglass cloth loose on table from Thayercraft
