3.12 osy 2116 TIGHT WEAVE 3 OZ

TIGHT WEAVES
3.12ounce per square yard (osy) TIGHT WEAVE
Balanced 60 x 58 thread count Silane for epoxy resins
7micron filament E-glass yarn ECE 225 1/0 warp and fill
Small rolls  Style 2116 in  38" wide + 44 and 50"  below
in  10 and 20 yard rolls on 2" PVC pipe -
Scroll down for cheap, cheap Factory rolls at 70 cents per yard !
FREE ground shipping to the 48 Continental United States
Blue lines below are clickable ORDER and PAY with PayPal links

38" wide rolls on 2" pvc pipe - for you to try the cloth
Cheap Factory rolls below
3.12 osy Tight Weave balanced style 2116 fiberglass cloth
3.12 osy Tight Weave balanced style 2116 fiberglass cloth
cheap, cheap Factory rolls
Buy 1,000 or more yards of any combination of rolls below for just
50 Cents per yard - Buy the rolls you want and we'll refund
the difference or send a paypal invoice -
Below 2116 rolls are as they came from the weaver on their original cores.  2116 is on two types of cores with most of the rolls on the 5" outside diameter(od) and 3" inside diameter(id) with the 1" thick walls. The 5x3 cores weigh  3.8 pounds per running foot. A few rolls will be on the 7" od x 6" id cores that have the 1/2" walls and weighs 3.5 pounds per linear foot.  Examples:   5" od x 3" id cores: 40.5" Long weigh 13.8 pounds, 46" Long weigh 15.6 pounds and 54" Long weigh 18 pounds. 7" od x 6" id  factory cores 42" Long weigh 12.25 pounds, 46" Long weigh 14.4 pounds, 54" Long weigh 15.8 pounds. The 38" wide cloth will be on 40.5 - 42" cores, 44" on 46 to 54" cores and 50" wide fabric will be on 52 - 54" cores.  Roll weights can be estimated by first calculating the weight of the cloth then adding the core weight.  Example:  a 160 yard roll of 2116, 44" wide on a 5" od core can be calculated as:  3.12 ounce per square yard divided by 16 ounces per pound to convert to pounds times the width of the cloth, 44" divided by 36, to correct for the oz/sq yd(osy) times the 160 yards => 3.12/16 x 44/36 x 160 => 0.195 x 1.22 x 160 = 38 pounds for the cloth plus approx 20 pounds for the core for 58 pounds for the roll on the core. Add another 2 pounds for the plastic, bubble pack and corrugated wrap for 60 pounds total for the 160 yd roll of 2116 44" on the 5x3 factory core ready to ship  We pay the shipping to the 48 Continental US so this is just for you to have an idea of what the roll you're getting will weigh. There are a variety of finishes with most compatible with Epoxy resin with just the CS316 for Polyester Resins.  See the list of finishes and descriptions at the bottom of this page.  Buy at least 1,000 yards in any combination of 38, 40, 44 and 50" and get it for 50 cents per yard (linear of course) with Free shipping to the lower48. If you buy a roll and it happens to have just sold you will get the next higher up.  There are more than one roll for some also. This deal is not for international sales
FREE ground shipping to the 48 Continental United States
38" wide on factory cores $0.70/yd   Many have more than one roll
39.5" wide on factory core - one roll $0.70/yd
40" wide on factory cores $0.70/yd
44" wide on factory cores $0.80/yd
50" wide on factory cores $0.90/yd

We enter your email when doing the shipping label for you to get tracking updates.  If you don't
get tracking please email us at thayercraft@cs.com
Blue line roll descriptions on pages below are clickable ORDER and PAY with PayPal links

621 is a BGF Finish for Epoxy resins as well as some other advanced aerospace resins
CS718 is a structural epoxy compatible silane finish
CS426 is a silane for epoxy resin finish
CS767 is a silane for any resin

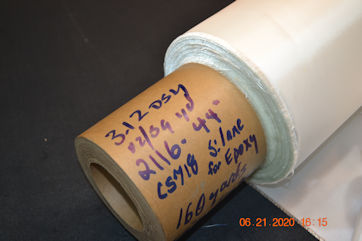

2116 44" CS718 160 yards on factory core loose end

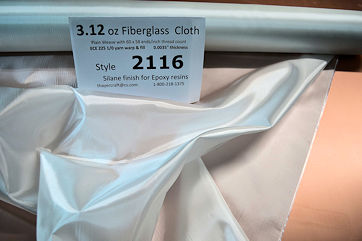

3.12 osy Plain TIGHT WEAVE fiberglass cloth style 2116 From Thayercraft
Factory Cores on buggy with Lola
5"od x 3" id factory cores on pallet
